The original BMW Dual Caliper solution! This dual caliper bracket kit is the easiest and least intrusive way to install a true Formula Drift style secondary/dual rear caliper setup for hydraulic handbraking; aka making mad skids! Don’t use an in-line system which can lead to constantly changing brake bias and pedal feel. Use this for consistent and reliable sideways action!

SLG brackets are designed by professional automotive engineers in the USA to be as strong as possible with no compromises, are manufactured in SLG own machine shop out of aerospace-grade 6061 aluminum, use ARP hardware, and are all shipped directly from our door to yours.



E9X M3 models are designed for use with:



  • Wilwood Forged Narrow Dynalite calipers for 1” thick rotors, such as 120-15255, 120-14332, or 120-15254 (Different piston size choices). 120-15255 is a great match for a .625’ master cylinder (The most common option)


All brackets feature the following:

  • Billet aerospace 6061 aluminum construction
  • Gold Anodizing
  • ARP Hardware for connection to trailing arm, and 12.9 hardware found in other locations
  • Allows for use of factory wheel speed/ABS sensors
  • Does not require the removal of axle, hub, or wheel bearing to install, unlike comparable products
  • Requires removal of dust shield and factory e-brake system

-

Installation instructions:

  • Remove caliper and rotor.
  • Remove factory e-brake shoes, mechanisms, and cables. May be necessary to cut cables and punch it out of the trailing arm from the backside.
  • Unbolt the dust shield and cut it, so you are able to bend it around the hub and remove it from the vehicle.
  • Clean the trailing arm to remove rust and uneven surfaces.
  • Bolt up the billet bracket to the trailing arm, using blue Loctite on the ARP hardware.
  • Install the 10mm allen head screw into the bracket from the backside of the trailing arm, through the factory e-brake cable hole.
  • Install brake rotor
  • Reinstall primary caliper in factory location, and install secondary caliper to the bracket.
  • Do mad skids!

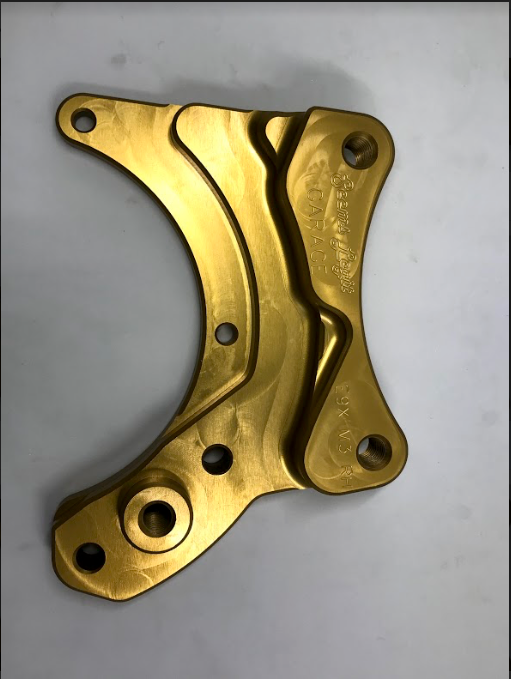

E9X M3 - Dual Caliper Bracket Kit

SKU: 772495
330,00$Precio
